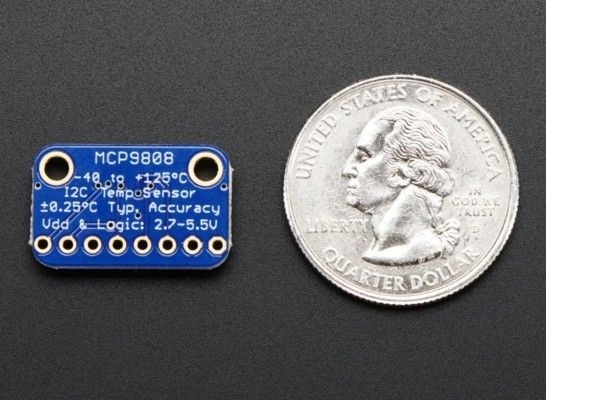

MCP9808 HIGH ACCURACY I2C TEMPERATURE SENSOR BREAKOUT BOARD, ADAFRUIT 1782

5,24 €



DESCRIPTION



This I2C digital temperature sensor is one of the more accurate/precise adafruit've ever seen, with a typical accuracy of ±0.25°C over the sensor's -40°C to +125°C range and precision of +0.0625°C. They work great with any microcontroller using standard i2c. There are 3 address pins so you can connect up to 8 to a single I2C bus without address collisions. Best of all, a wide voltage range makes is usable with 2.7V to 5.5V logic!



Unlike the DS18B20, this sensor does not come in through-hole package so adafruit placed this small sensor on a breakout board PCB for easy use. The PCB includes mounting holes, and pull down resistors for the 3 address pins. Adafruit even wrote a lovely little tutorial and library that will work with any Arduino compatible. You'll be up and running in 15 minutes or less.



Some quick specs:

- Simple I2C control

- Up to 8 on a single I2C bus with adjustable address pins

- 0.25°C typical precision over -40°C to 125°C range (0.5°C guaranteed max from -20°C to 100°C)

- 0.0625°C resolution

- 2.7V to 5.5V power and logic voltage range

- Operating Current: 200 μA (typical)







TECHNICAL DETAILS



Technical specs:

- Sensing Temperature: -40ºC ~ 125ºC

- Accuracy: 0.25ºC typical

- Voltage - Supply: 2.7V ~ 5.5V

- Operating Temperature: -40ºC ~ 125ºC

- Uses any I2C address from 0x18 thru 0x1F



Dimensions:

- 21mm x 13mm x 2mm

- Weight: 0.9g
