ADAFRUIT HTU21D-F TEMPERATURE & HUMIDITY SENSOR BREAKOUT BOARD, ADAFRUIT 1899

  • Zaliha: DA, 5 kom/da
  • Snabdevanje 7 dana
  • Marka: ADAFRUIT
  • Id broj: 825/57
15,83 €

DESCRIPTION

It's summer and you're sweating and your hair's all frizzy and all you really want to know is why the weatherman said this morning that today's relative humidity would max out at a perfectly reasonable 52% when it feels more like 77%. Enter the HTU21D-F Temperature + Humidity Sensor - the best way to prove the weatherman wrong!

This I2C digital humidity sensor is an accurate and intelligent alternative to the much simpler Humidity and Temperature Sensor - SHT15 Breakout It has a typical accuracy of ±2% with an operating range that's optimized from 5% to 95% RH. Operation outside this range is still possible - just the accuracy might drop a bit. The temperature output has an accuracy of ±1°C from -30~90°C. If you're looking to measure temperature more accurately, adafruit recommend the MCP9808 High Accuracy I2C Temperature Sensor Breakout Board.

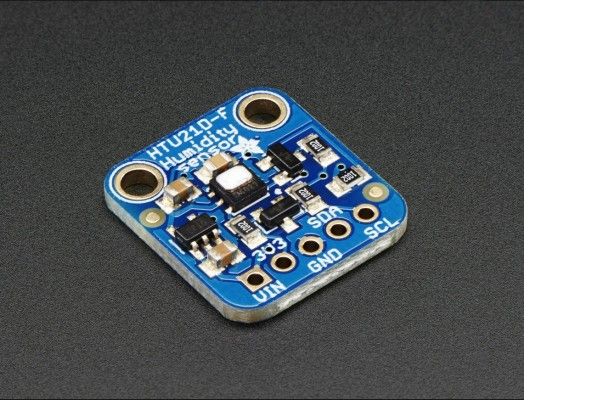

Such a lovely chip - so adafruit spun up a breakout board that includes the Filtered version (the white bit of plastic which is a PTFE filter to keep the sensor clean), a 3.3V regulator and I2C level shifting circuitry. This lets you use it safely with any kind of microcontroller with 3.3V-5V power or logic. Each order comes with one fully assembled and tested PCB breakout and a small piece of header. You'll need to solder the header onto the PCB but it's fairly easy and takes only a few minutes even for a beginner.

It's also very easy to use, thanks to our Arduino library and tutorial. Check out tutorial for pinouts, wiring, files, etc.

TECHNICAL DETAILS

Dimensions:

- 18mm x 16mm x 2mm / 0.7" x 0.6" x 0.08"

- Weight: 1g

- I2C 7-bit address 0x40

Datasheet

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
